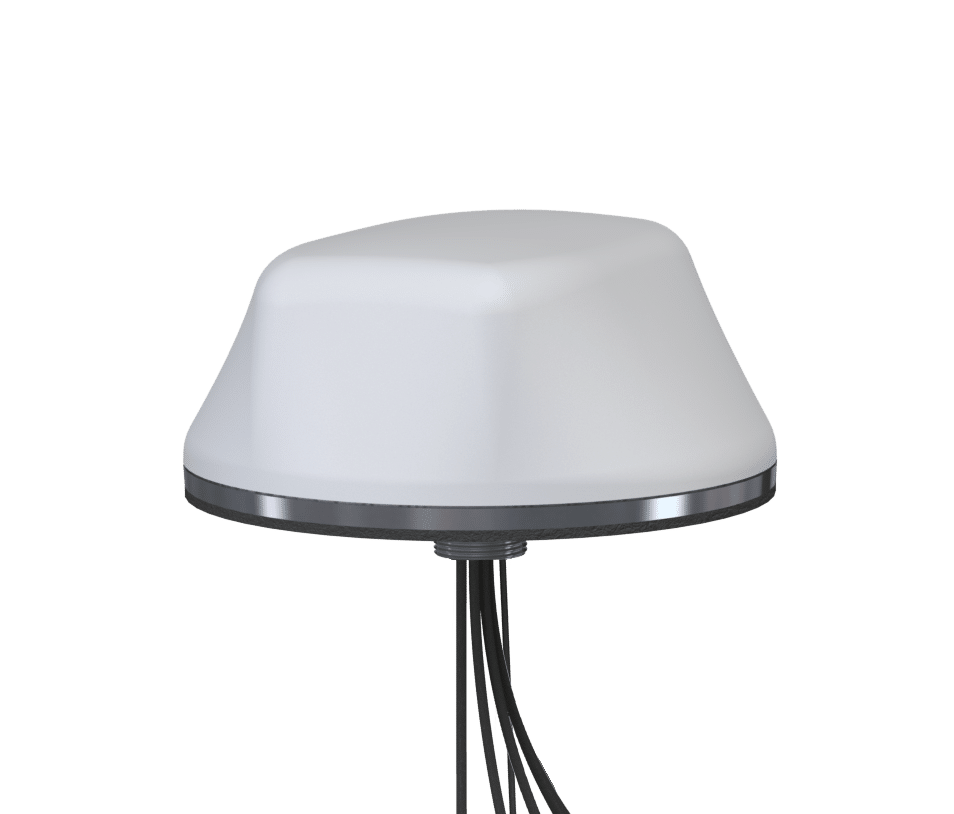

The 5-cable “500” series LTM antennas include two Cellular antennas, two WiFi antennas and one GNSS antenna. The Cellular antenna also covers CBRS antenna requirements for Citizens Broadband Radio Service networks. GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz. This provides MIMO (multiple-input-multiple-output) coverage for both Cellular and WiFi. The LTMG502 (2x 4G/5G Cellular, 2x WiFi, GNSS) antenna is ideal for fleet management systems that combine GNSS with a broadband cellular modem as well as a WiFi MIMO modem. The LTMG502 (2x 4G/5G Cellular, 2x WiFi, GNSS) differs from the LTMG501 in that it was designed to cover all Cellular frequencies worldwide. This Global LTE ready antenna covers: 694-960 & 1710-3700 MHz. Measuring 5.5″ (140 mm) in diameter with a low profile of 2.38″ (60.4 mm), the LTMG-502 series antennas take up significantly less space than multiple antennas. Because the Cellular antenna elements cover up to 3.7 GHz, this antenna can be used for CBRS private networks. The antennas can be mounted in a fixed location, or they can be mounted on any mobile vehicle including car, truck, or bus. The antenna are available in either surface-mount or mag-mount models. Specify MLTMG502 for the Mag-mount Version. Otherwise, specify LTM502 for the GPS model.
LTM502-3C3C3C3C2C-WHT-12
Technical Information
The details you need to build your bill of materials list. If you need more information or have questions, remember you can always talk to our experts by calling or scheduling a call.
Additional Information
Spec Sheet
